Aura®

Aura® represents a family of 6 French steerable and fixed-curve electrophysiology diagnostic catheters with up to twenty electrodes.

Aura® Aura®


Salient Features:

  • Unidirectional and Bi-directional Steering Options
  • Conventional and Custom Fixed-Curves Availability
  • Various Electrode Lengths and A Verity of Inter-electrode Spacing
  • Soft and Stiff Distal/Proximal Shafts Available
  • Gradual (Smooth) Transition between the Distal and Proximal Shafts


Catheter's Physical & Dimensional Characteristics

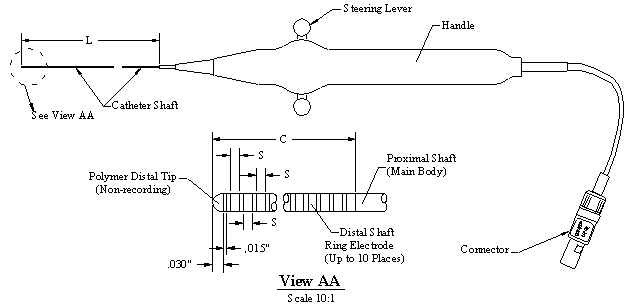

In the figure below that depicts our steerable catheter, the distal shaft length, designated by a letter "C" is offered in five length options, which are 2, 3, 4, 5 and 6 inches plus. The catheter shaft length designated by a letter "L" comes in three optional lengths, which are 80, 100 and 120 centimeters. The inter-electrode spacing designated by a letter "S" is offered in eight spacing options, which are follows: 2.5mm, 5mm, 10mm, 2mm/5mm/2mm, 2mm/8mm/2mm, 2mm/10mm/2mm, 2mm/8mm/2mm... 60mm ...2mm/8mm/2mm, and custom inter-electrode spacing. The electrode length options are 1.5 mm and 2.5 mm.



Catheter Models--Steerable

The Model Formulae: 6UELXS-C and 6BELXS-C

In the model formulae, the numeral 6 indicates 6-French size while U and B stand for the unidirectional and bi-directional steerable catheters, respectively. Where E=1 to 20 for the number of electrodes. Designations of the other letters in the formulae are tabulated below.

Catheter Shaft Length

L

Electrode

Length

X

Inter-electrode

Spacing

S

Distal Shaft Length

C

80 cm

A

1.5 mm

1

2.5mm

1

2 inches

2

100 cm

B

2.5mm

2

5mm

2

3 inches

3

120cm

C



10mm

3

4 inches

4



2mm/5mm/2mm

4

5 inches

5



2mm/8mm/2mm

5

6 inches

6



2mm/8mm/2mm

60mm

2mm/8mm/2mm

6

6 inches

plus

7



2mm/10mm/2mm

7




Custom

8



To determine a catheter model, the formula is applied as follows: For example, 6-French bi-directional steerable 100 centimeter long catheter having twenty 1.5-mm long electrodes with inter-electrode spacing of 5mm, and 3 inch long distal shaft will be model 6B20B12-3.

Catheter Models--Fixed Curve

The Model Formula: 6FELXS-C

In the model formulae, the numeral 6 indicates 6-French size while F stands for the fixed-curve catheters. Where E=1 to 20 for the number of electrodes. Designations of the letters L, X and S in the formulae are tabulated above. The letter C stands for a fixed-curve shape and is designated as follows: For Cournand Curve, C=1; D'Amato Curve, C=2; Josephson Curve, C=3; Coronary Sinus Curve, C=4; Conduction Study Curve, C=5; His Bundle Curve, C=6; Multi-purpose Curve, C=7; Special Procedure Curve, C=8; and a custom (prescribed) curve, C=9.

To determine a catheter model, the formula is applied as follows: For example, 6-French fixed-curve 100 centimeter long catheter having fourteen 1.5-mm long electrodes with inter-electrode spacing of 5mm, and a distal shaft with Cournand curve will be model 6F14B12-1.
